CabCube Collapsible Tripbox 1200×1000 mm
Product No.: CABCUBE
3-piece sleeve pack container for transportation of large-volume parts
CabCube Collapsible Tripbox Technical Data:
| Ext. Dimensions (mm): |
length: 1210 width: 1010 height: 990 |
| Int. Dimensions (mm): | length: 1140 width: 940 height: 816 |
| Weight (kg): |
—- |
| Fill Volume (litres): | 875 |
| Height of folded box (mm): | 222 |
| Colour: | — |
| Part Number: | CABCUBE |
Load Capacity (kg):
| Max. Filling Weight: | 250 / 500 |
| Max. Stacking Load: |
250 / 1200 |
| Max. Stacking Factor: | 1 + 5 / 1 + 2 |
| High Rack: | — / — |
Component Specs: |
Pallet: | Sleeve [optional]: | Lid: |
| Weight (kg): |
19.50 | 11.0 | 8.50 |
| Material: | PE | PP | PE |
| Dimensions (mm): |
1200 x 1010 x 190/200 | 1160 x 962 x 850 | 1185 x 989 x 72 |
| Forklift ground clearance (mm): | 100 | — | — |
| Wall thickness of sleeve (mm): | — | 10.40 | — |
| Flap opening [optional] (mm): | — | 600 x 300 | — |
Cubes per truck: |
|
| Storage space: |
26 |
| Set up containers: | 78 (3 per stack) |
| Empty containers [flat]: |
364 (14 per stack) |
| Return Rate: | 1 : 4.70 |
Thanks to injection moulding, the CabCube Collapsible Tripbox delivers robustness, precision, and longevity. This sets this pallet cube apart from other products on the market, which are typically manufactured by deep drawing.

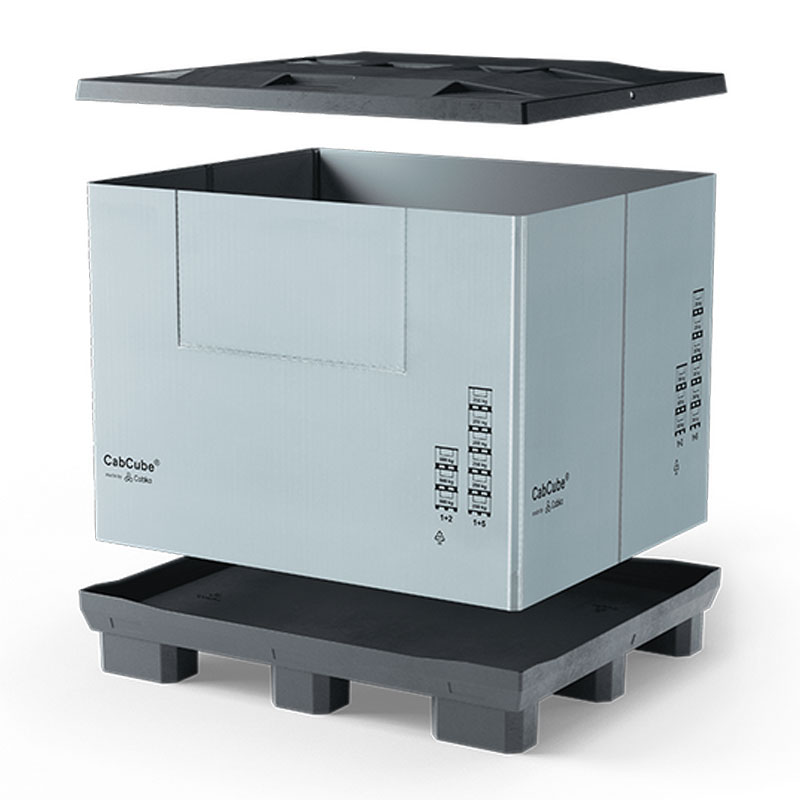

At 39 kg, the CabCube Collapsible Tripbox is still light and easy to handle. In just a few steps, the ring collapses and stacks on top of the pallet and lid. The foldable sleeve also stores between the pallet and lid for returning empties. The 3-piece CabCube Collapsible Tripbox remains together as a closed packaging unit. Finally, the CabCube achieves up to 80% volume reduction for cost-effective, CO2-efficient return transport.
